Bloggers Community Currency table build ( Part 1 )

Before we begin  go and make a brew and grab some biscuits this is should be a good read.

So as you may be aware myself an James 'GI' Brewerton did a deal using the community currency idea so we would both benefit. I received a very nice Irish war band for Saga, which would also work for some Dux B as well so doubly happy.

James requested I build him a 4 Ft x 4 Ft table, that was composed of two 4 Ft x 2 Ft sections. His only stipulation was he did not want a billiard table. So here is how it was constructed and the end result.

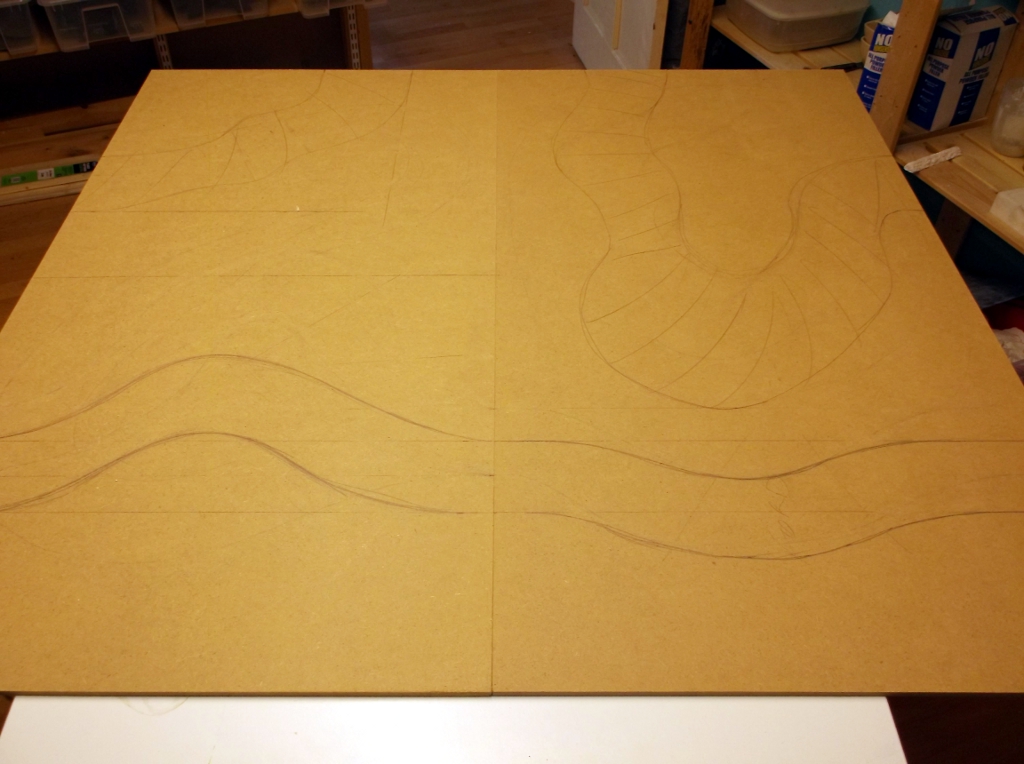

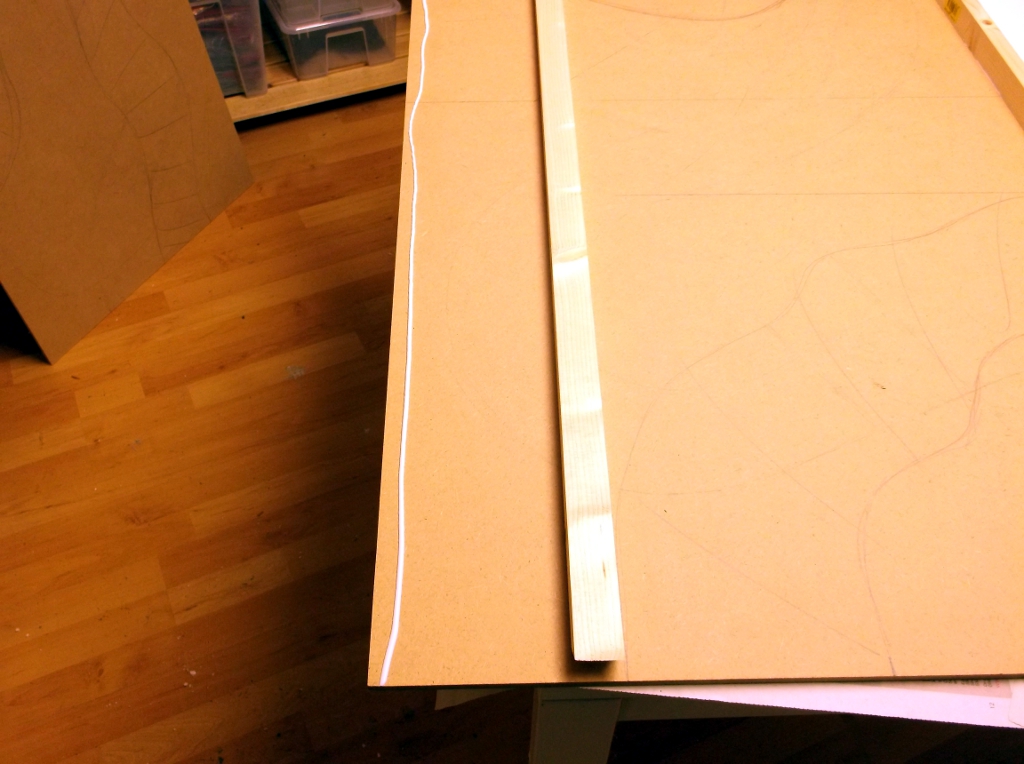

Step one: Sketch out a rough design so you can see what you want to achieve, I have enough experience to do this directly onto the boards I am using. For a first time builder I would recommend paper and pencil as the design gets buried under the work in progress.
Now in the sketching phase I wanted the boards to work on both long edges with each other thus giving James two layouts from his boards. I also wanted there to be some features to the design, which in turn impacts on the build process and you have to make sure the boards will work how you need them to refining measurements as needed

Step two: Using some 28 mm x 18 mm battens I began the process of framing the boards.

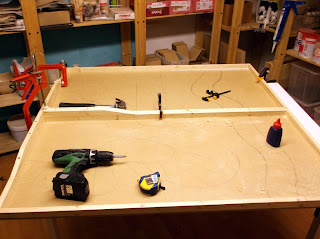

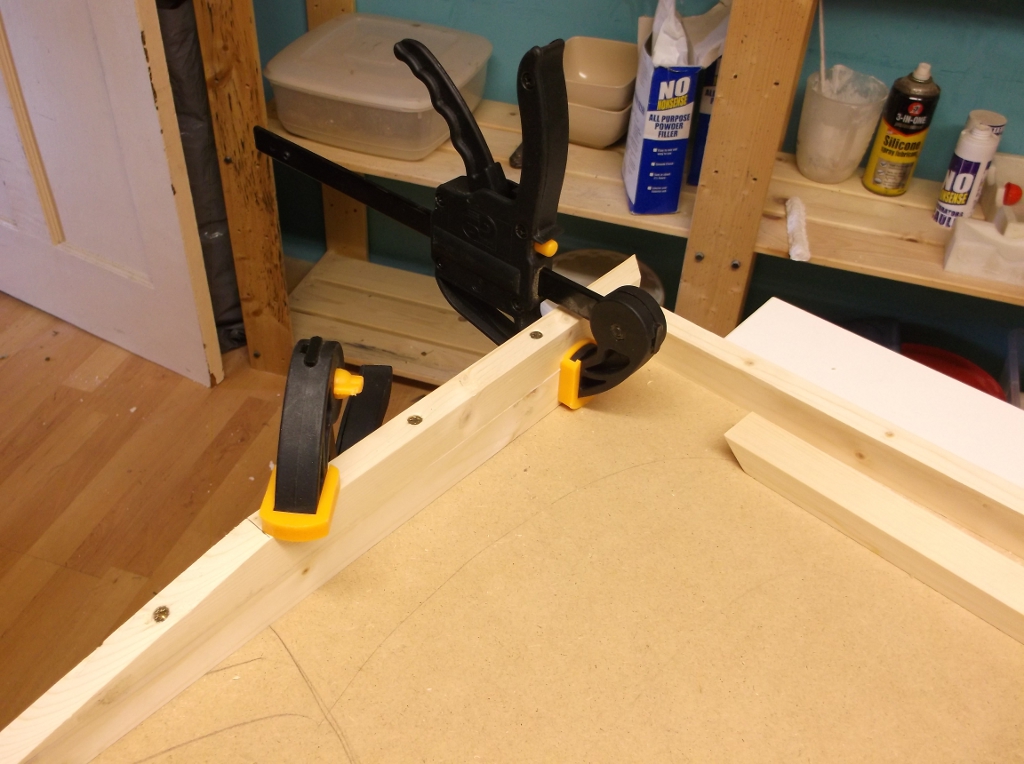

 Using glue and clamps as well as a nailer I affixed all the battens to create the outer frame.
Once the initial perimeter was built it was time to increase the perimeter height at certain points to allow me to build up the terrain features. Again Clamps, Glue and screws are used to fix these in place.
After 4 hours of cutting, drilling, and fine tuning (that's what the hammer is for). The assembly was left overnight for all the glue to dry fully before I started to build up the terrain.

Step three: This is were the terrain really starts to come to life, Firstly the frames are infilled with styrene and built to the basic shape required. then all the featured are cut and sanded to their final shapes.

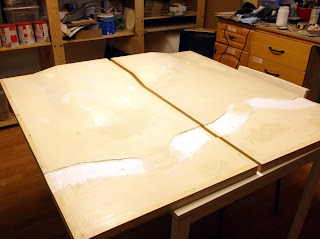

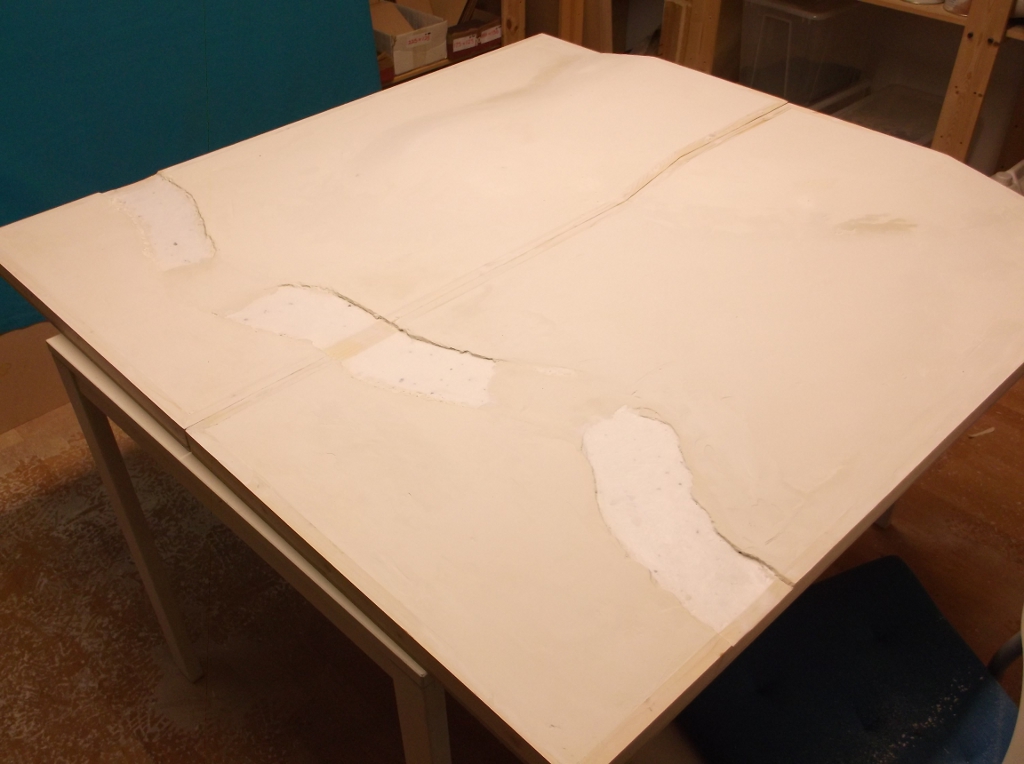

The features are then given a nice plaster overcoat that is approx 3mm thick, the main points to check are the board alignments. In the case of these boards its the river and lower faces of the hills. So after another 4 hours again we have to take a break overnight for the plaster to dry out.
The river is coated in acrylic paste and smoothed to a semi finish.

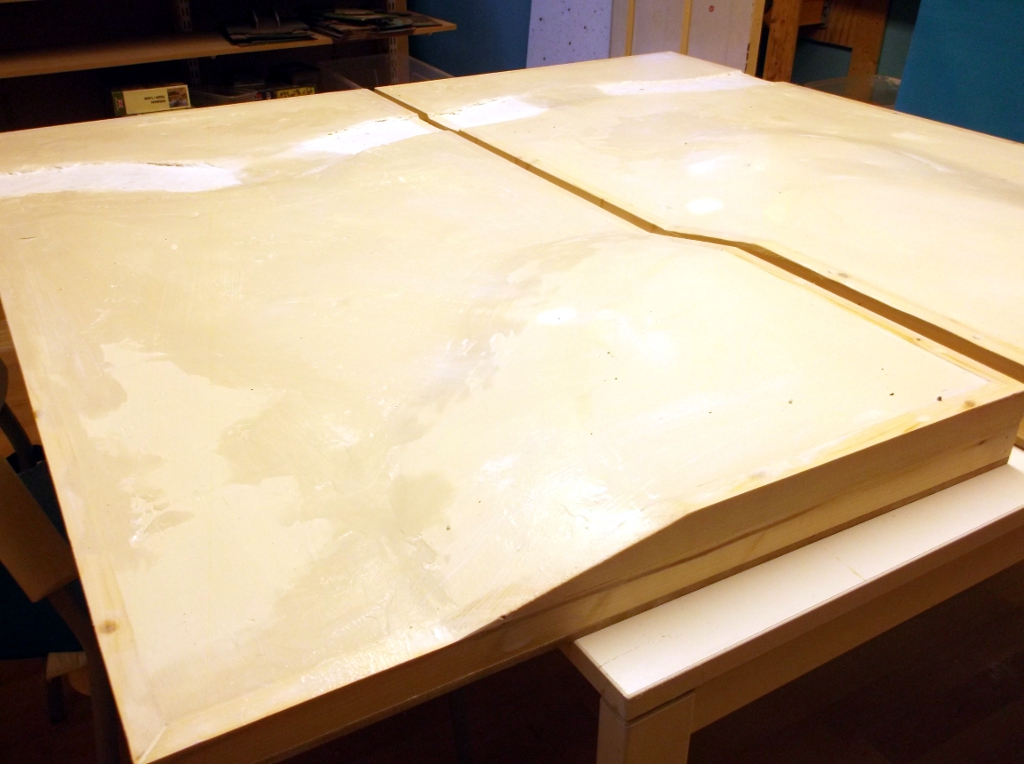

Step four: Lots of work with both an electric sander and hand sanding to get the plaster surface fairly smooth in order to apply the texturing.

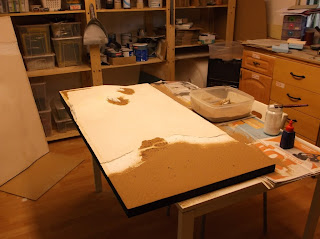

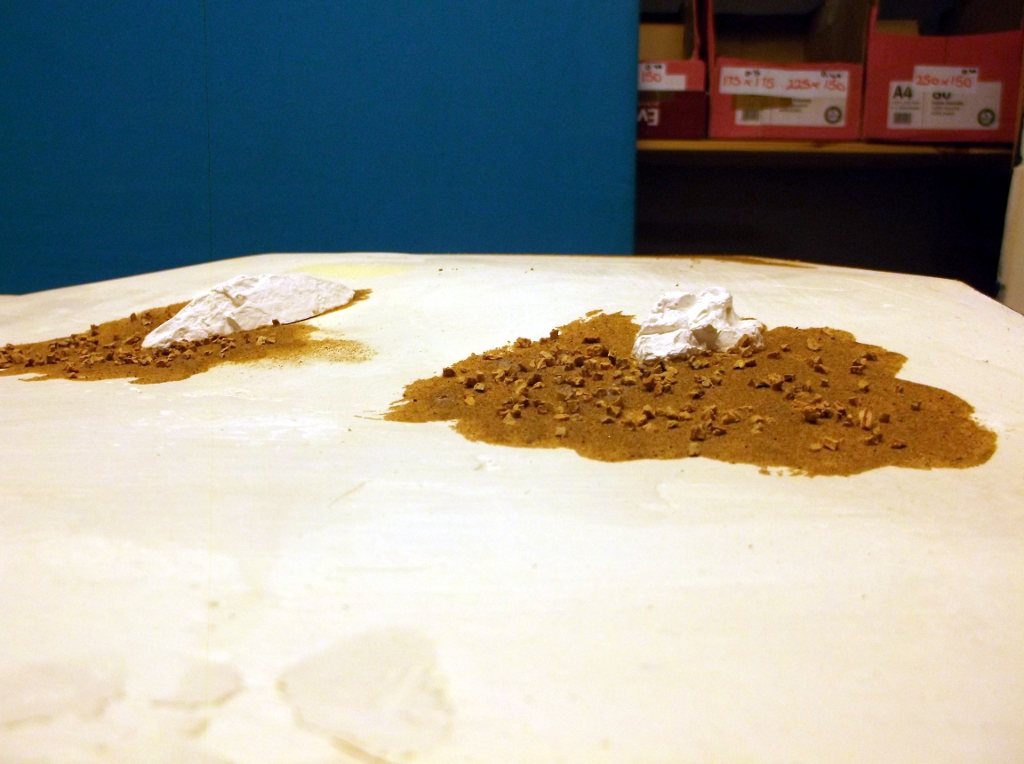

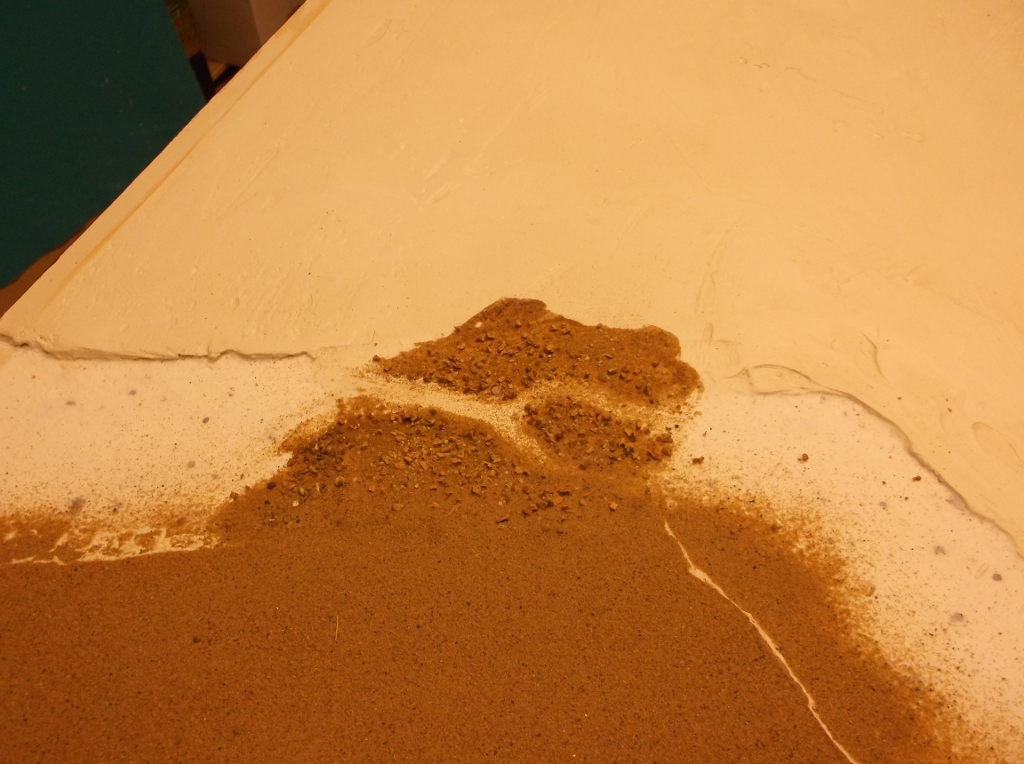

The coarse textures are added first then the finer sand spread over the top, working as quickly as possible but without rushing.

So thats the boards textured, you will notice the river is texture free, that comes later and the white patches on the slopes are rock features. This all needs a good few hours to dry so I normally leave this overnight.

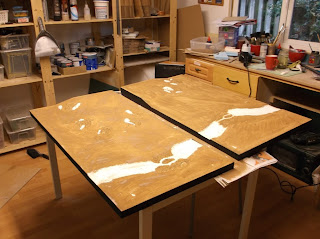

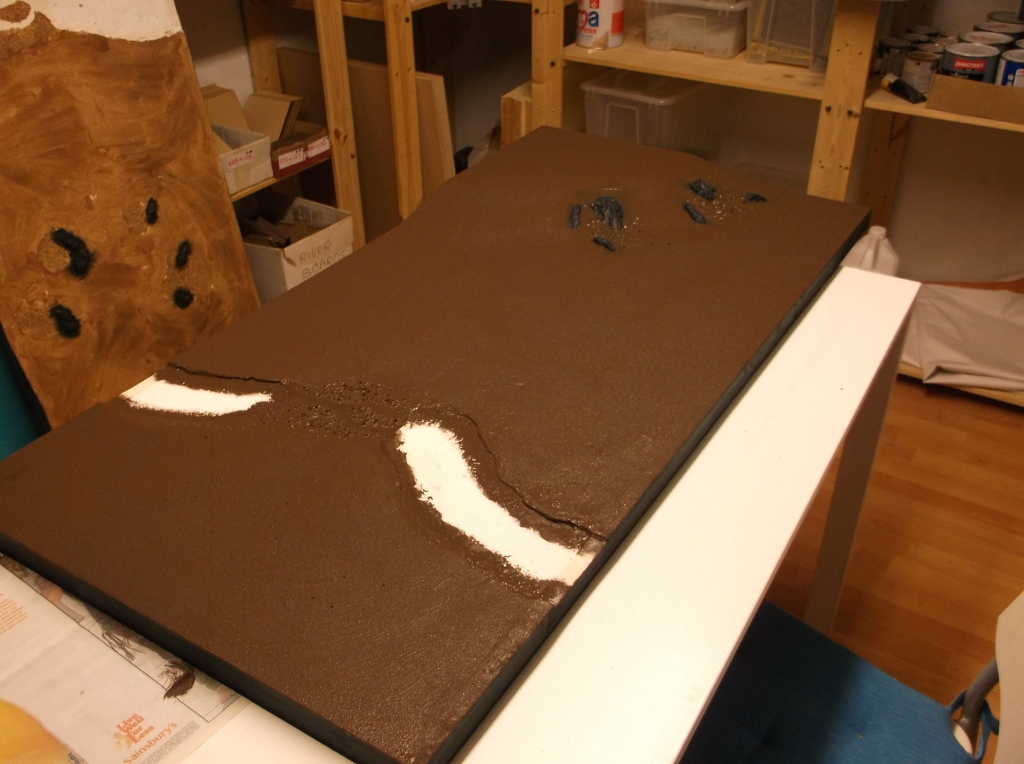

Step 5: Base coating the boards. Taking a very dark brown I now cover the previously applied texture. I can hear you ask why I dont use sandtex paint the answer is simple, for my taste it is not as good as putting in the hard work to achieve a better finished result.
I also put a base coat on the rock features and set the boards aside to dry, in good weather 4 hours is normal in this case it took 12 hours for it to fully dry.

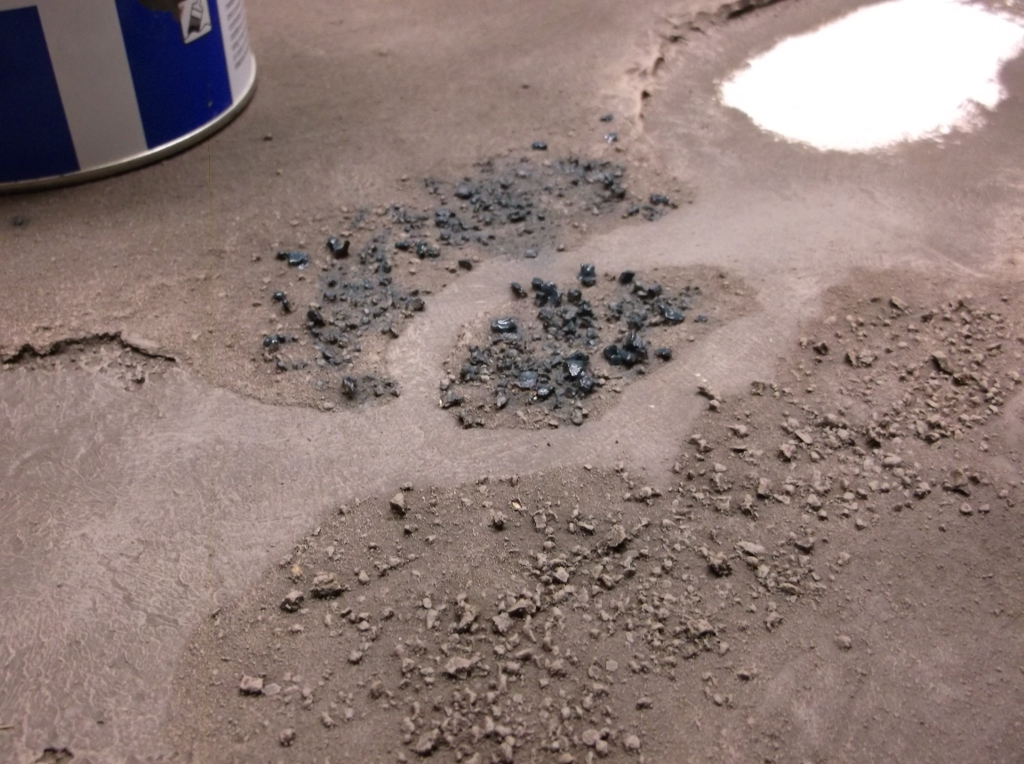

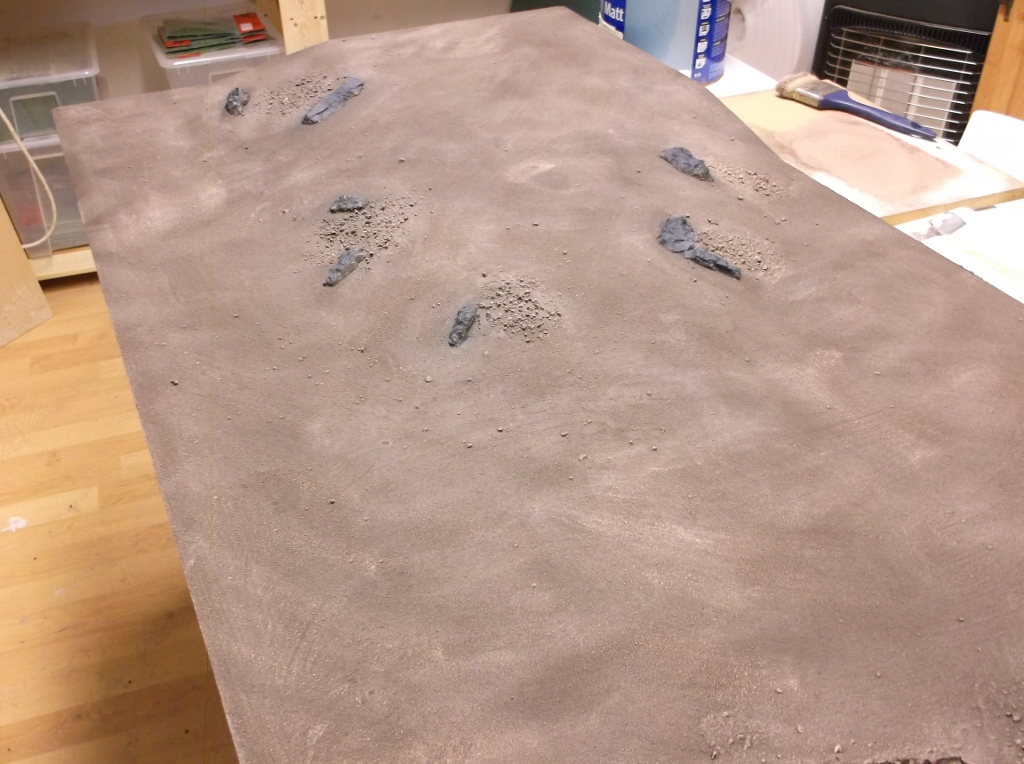

Step 6: Dry brush the boards up, using two progressively lighter shades of brown.

Step seven: Tedious to say the least but it has to be done.

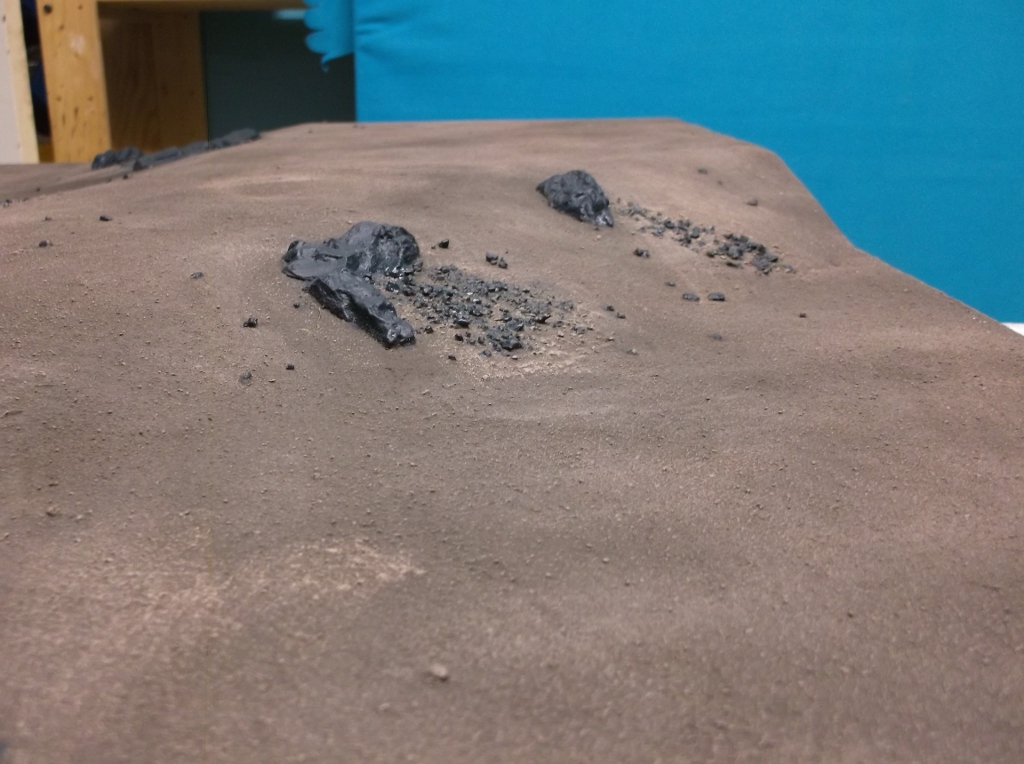

Start picking out the large stones and working them up to the finished state by dry brushing several lighter shades. This does take an age but worth it in the end.

That is it for part 1 as you can see a lot of work has to be put into things you will never see again to get everything to look right when finished. I hope to have Part 2 ready for tomorrow or Saturday evening.
